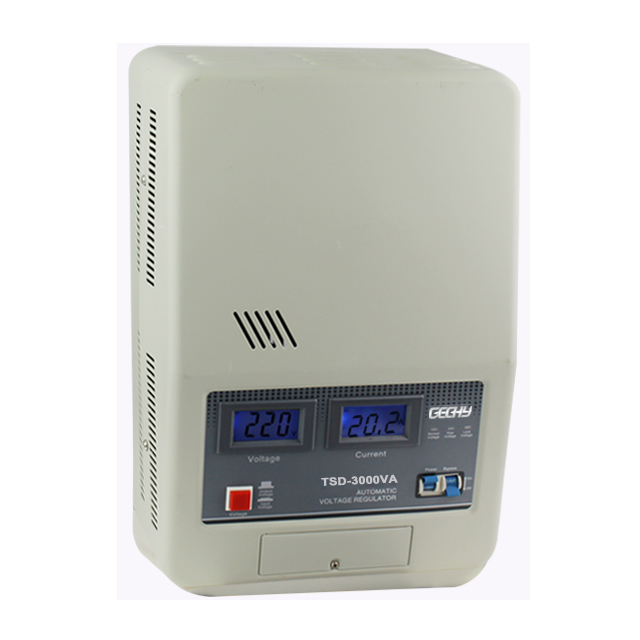

TSD-3000VA

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:
TSD Series wall mounted single phase servo type full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has the high efficiency,high precision, large capacity and reliable performance and so on. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable.Goods widely used in the household, industrial and agricultural production etc.

Advantage:

•Suitable for wall mounting

•Microprocessor control

•Stepless voltage regulation over a wide range

•The high output voltage accuracy (220V ±1.5%)
•Surge protection

•Protection against short circuit and overheating
•Differentiation and fault indication
•Informative LCD-display
•Modern design
•urge protection up to 300 V
•High speed regulation
•The multistage defense

Product Parameter :

Model	TSD-3000VA
Power capacity	3000W
Input voltage	AC 140-260V
Output voltage	220V±1.5%
Phase	Single Phase
Frequency	50-60Hz
Adjust Time	1 second
Type of stabilization	Electromechanical
Display	LCD digital display
Protection over voltage	255±2V
Protection lack voltage	185±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP 20
Delay	3 second
Temperature protection	110℃ ± 10℃
Ambient Temperature	-10～+45℃
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device	385260160mm(LWH)
Weight of device	12.5Kg
