Product Info

Product name:

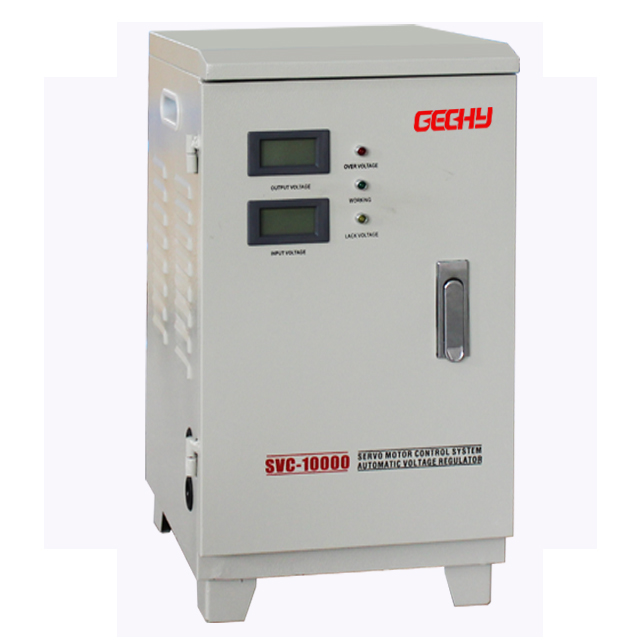

SVC-10KVA Vertical Type

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:
SVC series single phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit and compensator. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable. The stabilizer widely used in the household, industrial and agricultural production etc.

Advantage:

•Microprocessor control
•Stepless voltage regulation over a wide range
•The high output voltage accuracy (220V ±1.5%)
•Surge protection

•Protection against short circuit & overheating
•Differentiation and fault indication
•Informative meter display
•Modern design
•urge protection up to 300 V
•High speed regulation
•The multistage defense

Product Parameter :

Model	SVC-10000VA Vertical Type
Power capacity	10000W
Input voltage	AC 140-260V
Output voltage	220V±1.5%
Phase	Single Phase
Frequency	50-60Hz
Adjust time	1 Second
Type of stabilization	Electromechanical
Display	Meter display
Protection over voltage	250±2V
Protection lack voltage	185±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP 20
Delay	3 second
Temperature protection	110℃ ± 10℃
Ambient Temperature	-10～+45℃
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device	485280240mm(LWH)
Weight of device	28.4Kg
