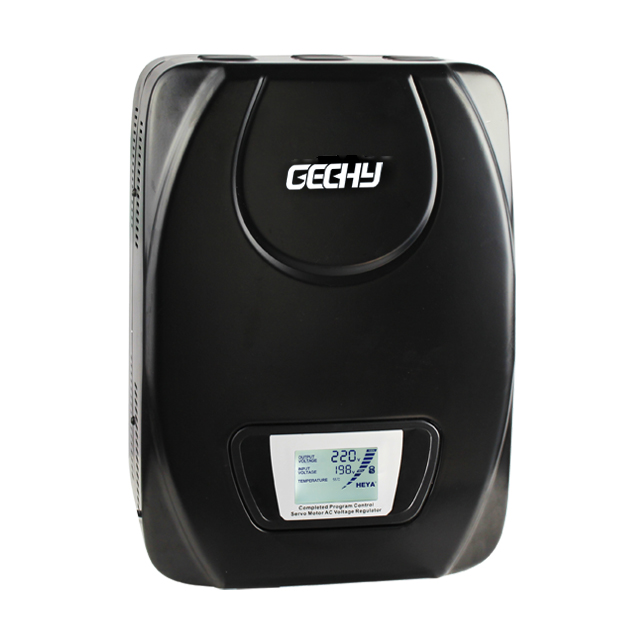

Motor single phase voltage regulator - SDWII Series - SDWII-6000-L

Product Category

Contact Us
Tel:
0086-577-61726373
Fax:
0086-577-61712103
E-mail:
admin@gechypower.com
Address:
No.88 Liuqing North Road,Liushi Town,Yueqing City,Zhejiang Province,China

Products

You are here: Home » Products » Motor single phase voltage regulator » SDWII Series

Product Info

Product name:

SDWII-6000-L

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:
SDWII series second generation relay type intelligent LCD display full automatic AC voltage regulator is a brand-new concept product. It is on the basis of years of producing relay type full automatic ac voltage regulator, after improvement, innovation and perfection of design with low energy consumption, over voltage and over current protection,short circuit protection etc. And sets many new technologies such as selective delay, impact resistant, multi function LCD display, energy saving and environmental protection.

Advantage:

•Suitable for wall mounting

•Stepless voltage regulation over a wide range

•The high output voltage accuracy (1.5%)
•Surge protection

•Protection against short circuit and overheating
•Differentiation and fault indication
•Informative LCD-display
•Modern design
•urge protection up to 300 V
•Microprocessor control
•High speed regulation
•The wide input voltage range
•The multistage defense

Product Parameter :

Model	SDWII-6000-L
Power capacity	5000W
Input voltage	AC 140-260V
Output voltage	220V±1.5%
Phase	Single Phase
Frequency	50-60Hz
Adjust Time	1 second
Type of stabilization	Electromechanical
Display	LCD digital display
Protection over voltage	250±2V
Protection lack voltage	185±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP 20
Delay	8 second
Temperature protection	110℃ ± 10℃
Ambient Temperature	-10～+45℃
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device	385260160mm(LWH)
Weight of device	15.5Kg
