Product Info

Product name:

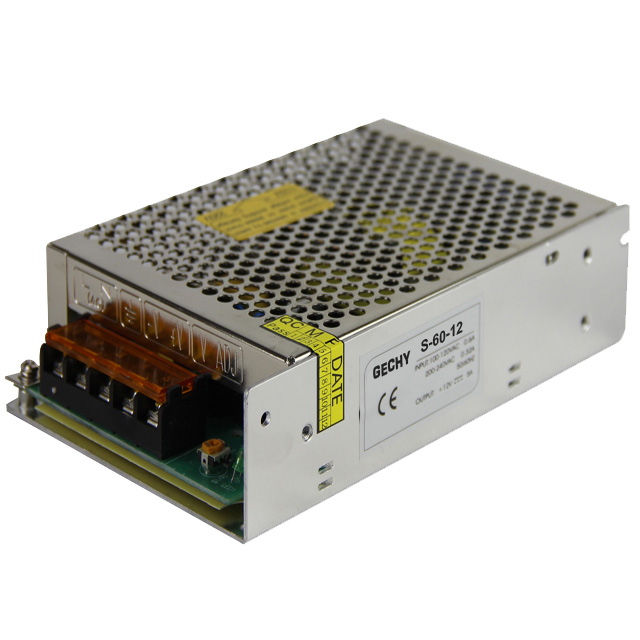

S-60W Switching Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

S-60W series compact single switching power supply feature：

· Universal AC input range

· Small volume，low weight，high efficiency

· Protections: short circuit/over load

· Cooling by free air convection

· LED indicator for power on

· 100% full load burn-in test

Model		S-60-5	S-60-12	S-60-15	S-60-24
Output	DC voltage	5V	12V	15V	24V
	Voltage tolerance	±2%	±1%	±1%	±1%
	Rated current	12A	5A	4A	2.5A
	Current range	0~12A	0~5A	0~4A	0~2.5A
	Rated power	80W	60W	60W	60W
	Ripple & noise	120mvp-p	120mvp-p	150mvp-p	150mvp-p
	DC voltage adjustable range	±10%	±10%	±10%	±10%
Input	Voltage range	85~132VAC/170~264VAC selected by switch，235~370VDC
	Frequency	47~63HZ
	AC current	1.6A/115VAC，0.8A/230VAC
	Efficiency	73%	76%	77%	79%
	Inrush current	Cold start current 30A/115VAC 60A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	115 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storage temp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	1117836mm(LWH)
	Weight/packing	0.27kg/50pcs/14.5kg/0.027m³/0.96CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
