Product name:

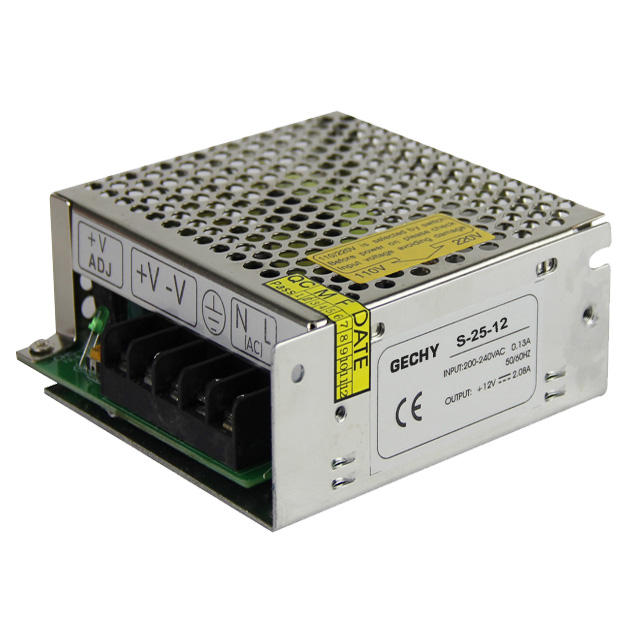

S-25W Switching Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

S-25W series compact single switching power supply feature：

· Universal AC input range

· Small volume，low weight，high efficiency

· Protections: short circuit/over load

· Cooling by free air convection

· LED indicator for power on

· 100% full load burn-in test

Model		S-25-5	S-25-12	S-25-15	S-25-24
Output	DC voltage	5V	12V	15V	24V
	Voltage tolerance	±2%	±1%	±1%	±1%
	Rated current	5A	2.1A	1.7A	1.1A
	Current range	0~5A	0~2.1A	0~1.7A	0~1.1A
	Rated power	25W	25.2W	25.5W	26.4W
	Ripple & noise	50mvp-p	100mvp-p	100mvp-p	120mvp-p
	DC voltage adjustable range	±10%	±10%	±10%	±10%
Input	Voltage range	80~264VAC，120~370VDC
	Frequency	47~63HZ
	AC current	0.35A/230VAC
	Efficiency	76%	78%	78%	80%
	Inrush current	Cold start current 30A/230VAC
	Leakage current	< 0.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
		Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storage temp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	845838mm(LWH)
	Weight/packing	0.15kg/80pcs/13kg/0.024m³/0.87CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
