Product Info

Product name:

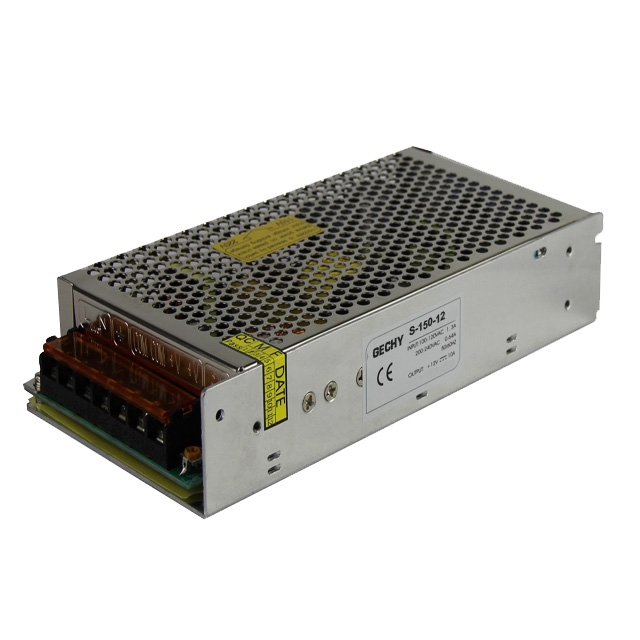

S-150W Switching Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

S-150W series compact single switching power supply feature：

· AC input range selected by switch

· Small volume，low weight，high efficiency

· Protections: short circuit/over load

· Cooling by free air convection

· LED indicator for power on

· 100% full load burn-in test

Model		S-150-5	S-150-12	S-150-15	S-150-24	S-150-48
Output	DC voltage	5V	12V	15V	24V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	30A	12.5A	10A	6.5A	3.2A
	Current range	0~30A	0~12.5A	0~10A	0~6.5A	0~3.2A
	Rated power	150W	150W	150W	156W	153.6W
	Ripple & noise	150mvp-p	180mvp-p	180mvp-p	240mvp-p	240mvp-p
	DC voltage adjustable range	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	85~132VAC/180~264VAC selected by switch, 255-370VDC
	Frequency	47~63HZ
	AC current	3.2A/115VAC, 1.6A/230VAC
	Efficiency	78%	81%	81%	84%	84%
	Inrush current	Cold start current 30A/115VAC 60A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
	Over load	Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	115 ~ 135% rated output power
	Over voltage	Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storage temp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
Safety	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
Fit standard	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	1599738mm(LWH)
Others	Weight/packing	0.54kg/45pcs/25kg/0.041m³/1.45CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
