Product name:

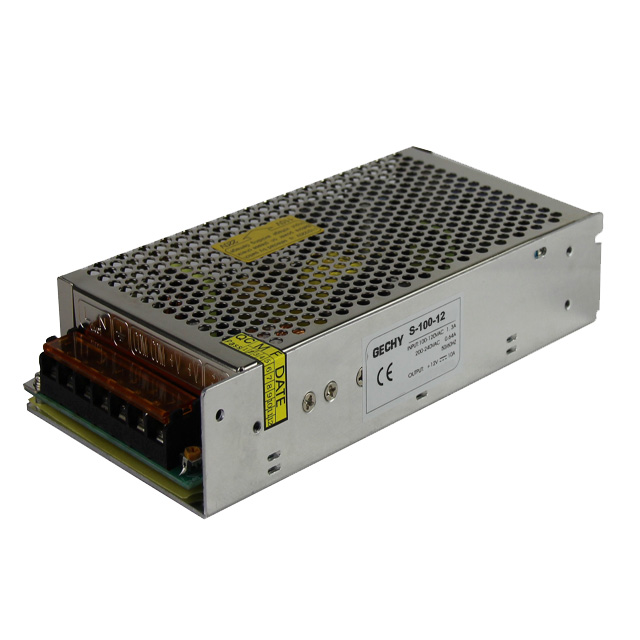

S-100W Switching Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

S-100W series compact single switching power supply feature：

· AC input range selected by switch

· Small volume，low weight，high efficiency

· Protections: short circuit/over load

· Cooling by free air convection

· LED indicator for power on

· 100% full load burn-in test

Model		S-100-5	S-100-12	S-100-15	S-100-24	S-100-48
Output	DC voltage	5V	12V	15V	24V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	20A	8.3A	6.7A	4.2A	2A
	Current range	0~20A	0~8.3A	0~6.7A	0~4.2A	0~2A
	Rated power	100W	99.6W	100.5W	100.8W	96W
	Ripple & noise	100mvp-p	100mvp-p	100mvp-p	100mvp-p	100mvp-p
	DC voltage adjustable range	±10%	±10%	±10%	±10%	±10%
Input	Voltage range	85~132VAC/180~264VAC selected by switch, 255-370VDC
	Frequency	47~63HZ
	AC current	2.4A/115VAC, 1.2A/230VAC
	Efficiency	78%	81%	81%	84%	84%
	Inrush current	Cold start current 30A/115VAC 60A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
	Over load	Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	115 ~ 135% rated output power
	Over voltage	Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storage temp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
Safety	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
Fit standard	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	1599738mm(LWH)
Others	Weight/packing	0.48kg/45pcs/22.5kg/0.041m³/0.87CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
