Product Info

Product name:

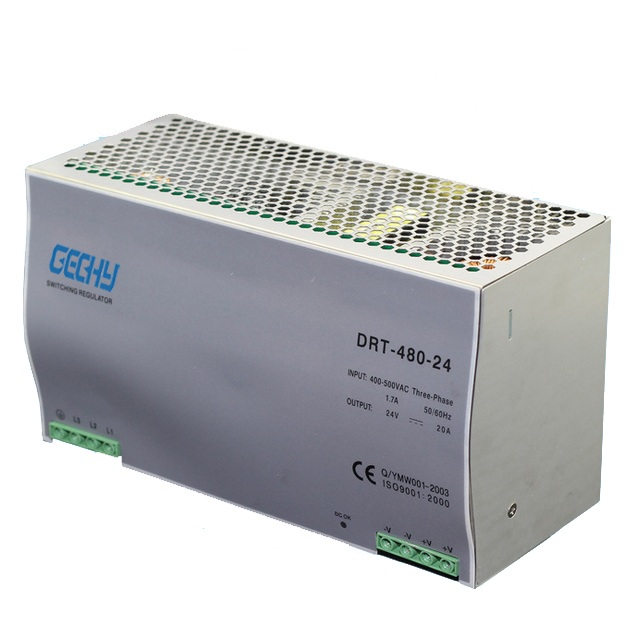

DR-480 Din Rail Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

DR-240W series Din-rail switching power supply feature：

· Universal AC input

· Small volume，low weight，high efficiency

· Protections: short circuit/over load/over voltage

· Cooling by free air convection

· Can be installed on DIN rail: TS-35/7.5or TS-35/15

· LED indicator for power on

· 100% full load burn-in test

Model		DR-480-24	DR-480-36	DR-480-48
Output	DC voltage	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%
	Rated current	20A	13.3A	10A
	Current range	0~20A	0~13.3A	0~10A
	Rated power	480W	478.8W	480W
	Ripple & noise	200mvp-p	240mvp-p	240mvp-p
	DC voltage adjustable range	-9% To +10%	±10%	±10%
Input	Voltage range	90~132VAC/180~264VAC， 255~373VDC
	Frequency	47~63HZ
	AC current	8.5A/115VAC, 4.5A/230VAC
	Efficiency	86%	88%	88%
	Inrush current	Cold start current 45A/115VAC, 60A/230VAC
	Leakage current	< 3.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	30.6~33.2V	42.6~46.8V	54.8~56.6V
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-20℃~+60℃，20%~90%RH
	Storage temp,humidity	-40℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	125.2125.2100mm(LWH)
	Weight/packing	2.4kg/6pcs/15.5kg/0.046m³/1.64CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
