Product Info

Product name:

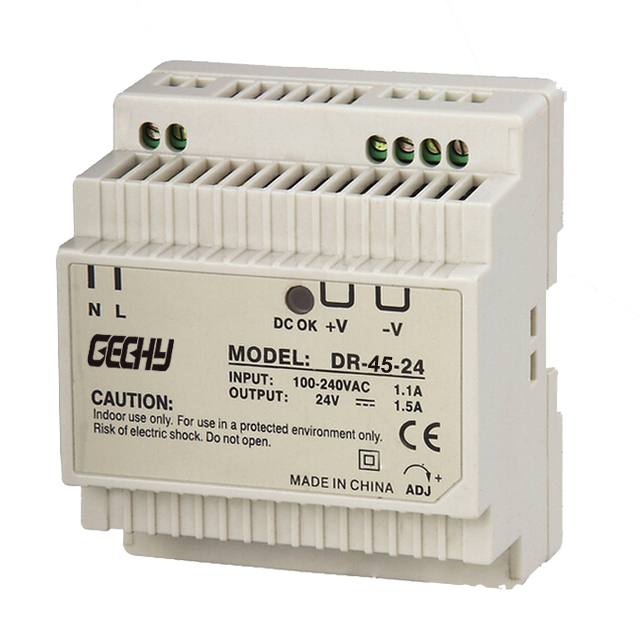

DR-45 Din Rail Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

DR-45W series Din-rail switching power supply feature：

· Universal AC input

· Small volume，low weight，high efficiency

· Protections: short circuit/over load/over voltage

· Cooling by free air convection

· Can be installed on DIN rail: TS-35/7.5or TS-35/15

· LED indicator for power on

· 100% full load burn-in test

Model		DR-45-5	DR-45-12	DR-45-24
Output	DC voltage	5V	12V	24V
	Voltage tolerance	±2%	±1%	±1%
	Rated current	5A	3.5A	2A
	Current range	0~5A	0~3.5A	0~2A
	Rated power	25W	42W	48W
	Ripple & noise	80mvp-p	100mvp-p	150mvp-p
	DC voltage adjustable range	-9% To +10%	±10%	±10%
Input	Voltage range	90~264VAC, 127-373VDC
	Frequency	47~63HZ
	AC current	1A/115VAC, 0.55A/230VAC
	Efficiency	75%	81%	83%
	Inrush current	Cold start current 20A/115VAC, 40A/230VAC
	Leakage current	< 1mA/240VAC
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	6.8~8.2V	15.6~17.8V	30.6~33.2V
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-20℃~+60℃，20%~90%RH
	Storage temp,humidity	-40℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022，CLASS A
Others	Dimension	789356mm(LWH)
	Weight/packing	0.3kg/48pcs/15.4kg/0.03m³/1.07CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
