In this article Gechy Electric Co.,Ltd will hlep you understand working of servo stabilizer. As mentioned in our product page there are mainly three types of Automatic voltage regulator. Servo stabilizer, Relay type voltage stablizer & now newly introduce technology of static voltage stabilizer. To understand working of servo stabilizer, we need to understand different components of servo stabilizer and its functions.
Components of Servo stabilizer or Automatic Voltage regulator.

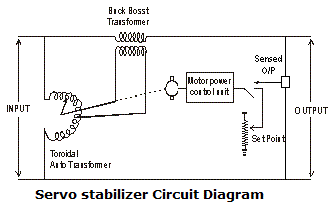

Servo motor controlled Automatic voltage stabilizer consists of following components (Please refer servo stabilizer circuit diagram shown below):
1. Buck/Boost Transformer: Buck/Boost transformer connected between mains input and out of stablizer of load terminals. One terminal of primary of buck boost transformer permanently connected to fixed tapping of autotransformer while another end connect to motor shaft.
2. Motor Driver: It is purely electronic circuitry which controls movement of motor. It consisting of PCBs consisting of solid state circuitry made up of capacitor, register, transistor Amplifier, microprocessor and ICs.
3. Control Circuitry Power supply: Control Circuitry PCB boards needs constant DC power supply. Control circuitry Power supply make available power for PCB boards. It consists of Rectifier (to convert AC to DC) and step down transformer.
From above article you must understand different components of servo stabilize, next article Gechy Electric will tell you the servo voltage stabilizer function and working.
