You are here: Home » Products » Regulator » TSGC2 Series

Product Info

Product name:

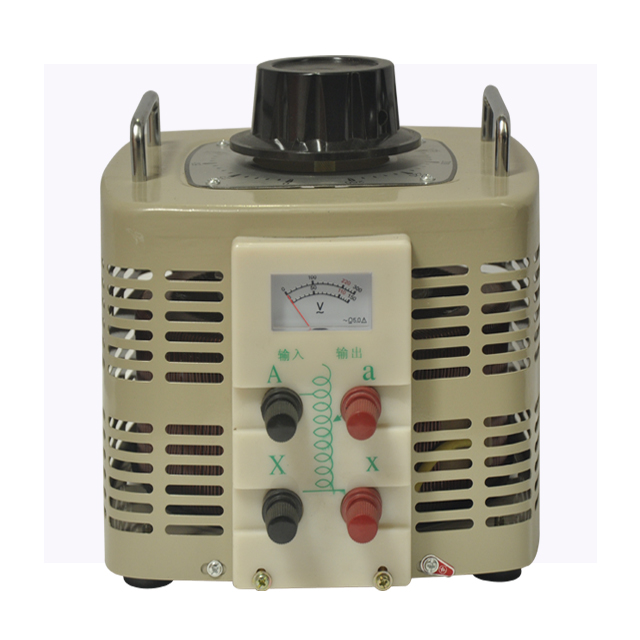

TDGC2-5KVA

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:

TDGC2 voltage regulator is in the structure of adjustable self-coupling transformer. It winds coil on ring shaped core, the brush fits close to the polished surface of coil under the press effect of sping, rotating shaft drives the brush holder and make brush slide along with the coil surface. so that to change the contact position of brush.

Application:

Widely used in industries(such as chemical, metallurgy, instruments, meters, light industry,etc), public service household electrical appliances, used to realize voltage regulation, temperature control, speed adjustment, light modulation, power control, etc.

Advantage:

•Undistorted waveform
•Compact volume
•Light weight
•High efficiency
•Convenient operation
•High accuracy
• Reliable
• Long-term operation

Product Parameter :

TDGC2 model and designation

Model	Max output capacity ( kVA )	Phase	Rated input voltage ( V )	Rated output voltage ( V )	Max output current ( A )	Overall size (WDL) mm	QTY (pcs)	G.W(Kg)
TDGC2-0.2KVA	0.2	1	220V	0-250V	0.8	105130130	12	26.5
TDGC2-0.5KVA	0.5		220V	0-250V	2	125150130	8	28
TDGC2-1KVA	1		220V	0-250V	4	180200210	4	26
TDGC2-2KVA	2		220V	0-250V	8	180200210	4	33
TDGC2-3KVA	3		220V	0-250V	12	210230235	2	23
TDGC2-5KVA	5		220V	0-250V	20	240285250	1	18
TDGC2-10KVA	10		220V	0-250V	40	240335400	1	40
TDGC2-15KVA	15		220V	0-250V	60	240335560	1	58
TDGC2-20KVA	20		220V	0-250V	80	250340290	1	60
TSGC2-1.5KVA	1.5	3	380V	0-430V	2	125180340	1	12
TSGC2-3KVA	3		380V	0-430V	4	180250430	1	21.5
TSGC2-5KVA	5		380V	0-430V	8	180250460	1	27
TSGC2-10KVA	10		380V	0-430V	12	210250590	1	35
TSGC2-15KVA	15		380V	0-430V	20	240330560	1	56
TSGC2-20KVA	20		380V	0-430V	27	240330580	1	60
TSGC2-30KVA	30		380V	0-430V	40	350420106	1	150
