Product Info

Product name:

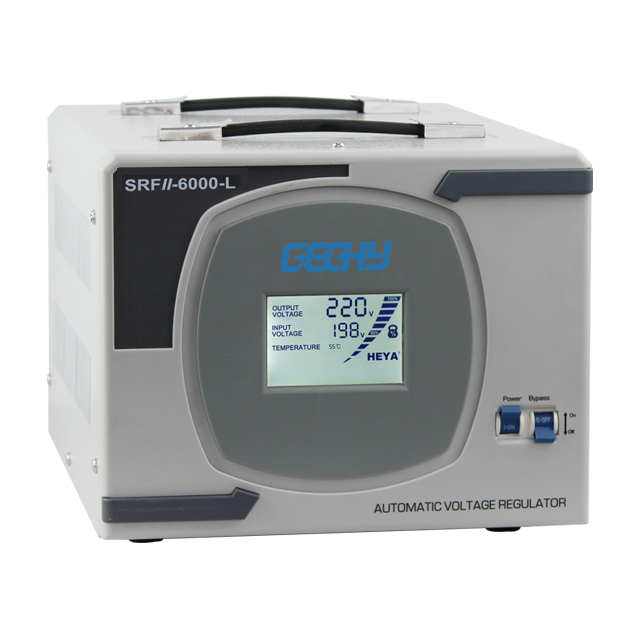

SRFII-6000-L

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:

SRFII series second generation relay type intelligent LCD display full automatic AC voltage regulator is a brand-new concept product. It is on the basis of years of producing relay type full automatic ac voltage regulator, after improvement, innovation and perfection of design with low energy consumption, over voltage and over current protection,short circuit protection etc. And sets many new technologies such as selective delay, impact resistant, multi function LCD display, energy saving and environmental protection.

Advantage:

•Number of relays 5 +1
•The high output voltage accuracy (3.5%)
•Current protection
•Differentiation and fault indication
•Informative LCD-display
•Modern design
•urge protection up to 300 V
•Microprocessor control
•High speed regulation
•The wide input voltage range
•The multistage defense

Product Parameter :

Model	SRFII-6000-L
Power capacity	5000W
Input voltage	AC 110-275V
Output voltage	220V±8%
Phase	Single Phase
Frequency	50-60Hz
Rated current	25A
Type of stabilization	Relay
Display	LCD digital display
Protection over voltage	250±2V
Protection lack voltage	180±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP 20
Delay	8 second
Temperature protection	110℃ ± 10℃
Ambient Temperature	-10～+45℃
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device	430315275mm(LWH)
Weight of device	12Kg
