Product Info

Product name:

SKA-1220

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:

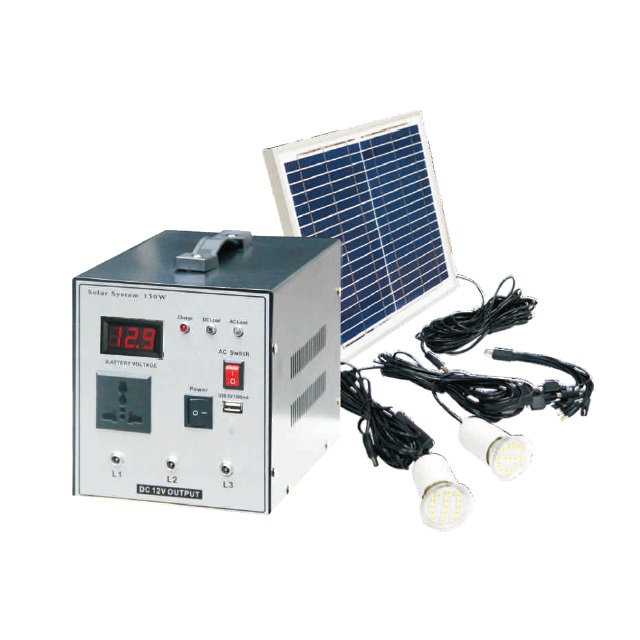

This portable solar system consists of solar module, rechargeable battery, controller, cabinet as well as a series of accessories such as cigar lighter plug and fuse, which can convert solar energy into electricity power and store it into battery. When needed, the power can be obtained via the universal built-in socket of the system.the solar generator is widely used in household lighting, outdoor working, fishing boats, field working,etc.

Advantage:

• Portable

• Easy operation, can be used at home or traveling outside
• Useful, charge for small household appliances like mobile, MP3, small fan etc
• Maintenance free, don’t need to maintain frequently
• High & low protect for the battery
• Electronic insurance tube is replaced of fuse, surge and over-current protection

•Two ways charging, can be charged from solar panel or grid

Product Parameter :

Model	SKA-1220
Rated Charging Current	5A
Rated Discharge Current	12.5A
Rated Working Voltage	12V
Float Charge Voltage	14V
Low-Voltage Protection	10.7V
ow-Voltage Recovery	11.5V
USB	5V 500mA
Working Temperature	-10℃~50℃
Storage Temperature	-15℃~40℃
Solar Panel Voltage	≤25V
Panel Power	20W
Output waveform	Modified sine wave
AC Output Voltage	110VAC/220VAC
No-Load Loss	≤8mA
Product Size	240142162mm (LWH)
Net Weight	11Kgs
QTY/Ctn	2PCS
Packing	Gift Nox
Carton Size/Weight	612439cm 23Kgs
Warranty	12 months
Accessories	QTY
12V/20W Solar Panel（6m Cable with DC plug）	1PCS
12V/3W LED Lamp（4m Cable With DC Plug）	2PCS
12AH Battery	1PCS
10 Types Mobile Charger	1PCS
DC Cable Clips	1 SET
