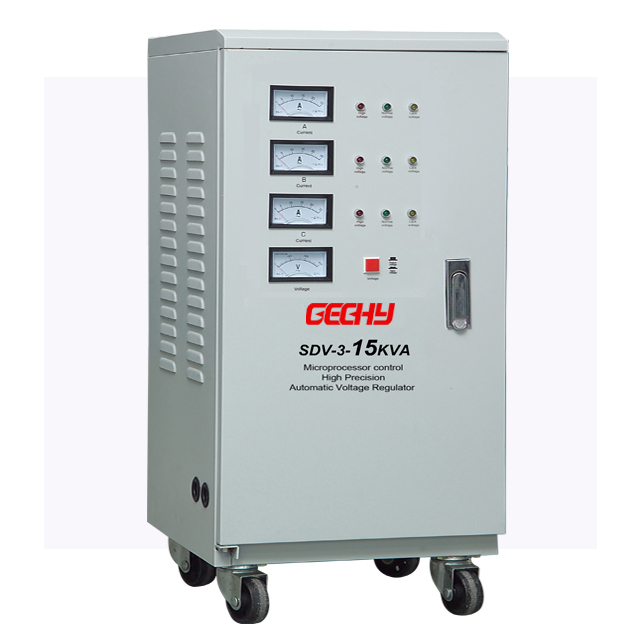

Three-phase motor regulator - SDV-3 Series - SDV-3-15KVA

Product Category

Contact Us
Tel:
0086-577-61726373
Fax:
0086-577-61712103
E-mail:
admin@gechypower.com
Address:
No.88 Liuqing North Road,Liushi Town,Yueqing City,Zhejiang Province,China

Products

You are here: Home » Products » Three-phase motor regulator » SDV-3 Series

Product Info

Product name:

SDV-3-15KVA

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

Introduction:
SDV series vertical three phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralized control technology. It has beautiful design,easy to moving,large capacity, etc. which is composed of servo motor, control circuit and compensator. All products have over voltage, delay, temperature and error production and also voltage two-way indication, which make the function of the product more perfect and reliable. The stabilizer widely used in the household, industrial and agricultural production and health areas..

Advantage:

•Microprocessor control
•Stepless voltage regulation over a wide range
•The high output voltage accuracy (380V ±1.5%)
•Surge protection

•Protection against short circuit & overheating
•Differentiation and fault indication
•Informative meter display
•Modern design
•urge protection up to 510 V
•High speed regulation
•The multistage defense

Product Parameter :

Model	SDV-3-15000VA
Power capacity	15000W
Input voltage	AC 240-450V
Output voltage	380V±1.5%
Phase	Three Phase
Frequency	50-60Hz
Adjust time	1 Second
Type of stabilization	Electromechanical
Display	Meter display
Protection over voltage	430±2V
Protection lack voltage	320±2V
Mode Bypass	Yes
Efficiency	98%
Type of connection	Terminal block
Degree of protection	IP 20
Delay	3 second
Temperature protection	110℃ ± 10℃
Ambient Temperature	-10～+45℃
Relative humidity	80%
Waveform distortion	No additional wave form distortion
Dimension of device	780320320mm(LWH)
Weight of device	59Kg
