Product Info

Product name:

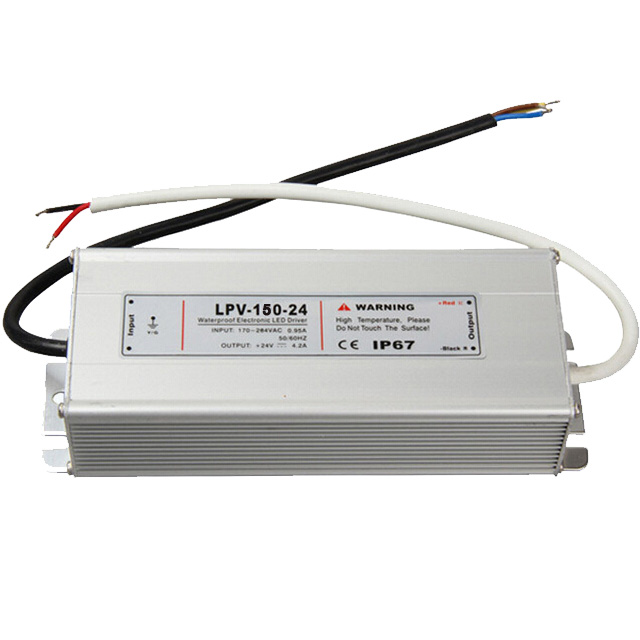

LPV-150 Waterproof Power Supply

--------------------------------------------------------------------------------------------------

OnLine Service：

Print this Page	Bookmark this
Skype Online	E-mail Us
PDF Download
【Prev Products】	【Next Products】

Description	Send Inquiry

LPV-150W series LED constant voltage waterproof switching power supply feature：

· Constant voltage style power supply

· Universal AC input range

· Small volume，low weight，high efficiency

· Protections: short circuit/over load/over voltage

· Cooling by free air convection

· Fully encapsulated with IP67 level

· 100% full load burn-in test

Model		LPV-150-12	LPV-150-24	LPV-150-36	LPV-150-48
Output	DC voltage	12V	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%
	Rated current	12.5A	6.3A	4.2A	3.1A
	Current range	0~12.5A	0~6.3A	0~4.2A	0~3.1A
	Rated power	150W	151.2W	151.2W	148.8W
	Ripple & noise	120mvp-p	150mvp-p	180mvp-p	180mvp-p
Input	Voltage range	180~264VAC， 255~373VDC
	Frequency	47~63HZ
	AC current	1.6A/230VAC
	Efficiency	82%	84%	84%	85%
	Inrush current	Cold start current 40A/230VAC
	Leakage current	< 2.5mA/240VAC
Protection	Over load	105 ~ 135% rated output power
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
	Over voltage	15.6~17.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
		Protection type: Hiccup mode, auto-recovery after fault condition is removed.
Environment	Working temp,humidity	-10℃~+60℃，20%~90%RH
	Storage temp,humidity	-20℃~+85℃，10%~95%RH non-condensing
	Withstand vibration	10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC，I/P-FG:1.5KVAC，O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P，I/P-FG，O/P-FG: 100M ohms/500VDC
Fit standard	Safety standard	Fit UL1012，IP67 protect level
	EMC standard	Fit EN55022，CLASSA
Others	Dimension	2406943mm(LWH)
	Weight/packing	1.26kg/20pcs/26kg/0.033m³/1.15CUFT

Remark：
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2 Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3 Tolerance : includes set up tolerance, line regulation and load regulation.
